SPMSA6380 SPEKTRUM A6380 METAL GEAR SERV HIGH VOLTAGE
SPMSA6380 SPEKTRUM A6380 METAL GEAR SERV HIGH VOLTAGE is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
SPMSA6380 SPEKTRUM A6380 METAL GEAR SERV HIGH VOLTAGE

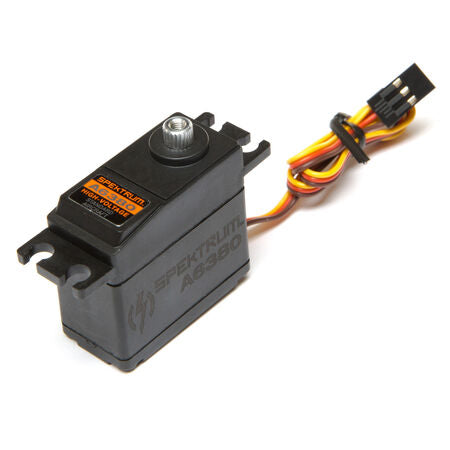

The Spektrum™ A6380 high-voltage, digital servo is the perfect budget-solution for your sport plane. With its durable design combined with dual bearing output support, metal-gear durability, smooth coreless motor operation, an impressive 160 oz-in torque rating at 8.4 volts, the A6380 servo boast specifications that easily beat other standard-size competitors in its class.
Specifications
- Application
- Airplane
- Bearing
- Dual
- Bushing Or Bearing
- Bearing
- Connector Type
- Universal
- Connector Wire Length
- 11.8" (300 mm)
- Deadband
- 5µs
- Gear Type
- Metal
- Input Voltage
- 6.0V to 8.4V
- Maximum Servo Speed
- 0.17 sec/60 deg @ 6V; 0.13 sec/60 deg @ 8.4V
- Maximum Servo Torque
- 102 oz-in (7.3kg-cm) @ 6V; 160 oz-in (11.5kg-cm) @ 8.4V
- Product Application
- Air
- Product Height
- 1.47" (37 mm)
- Product Length
- 1.52" (39 mm)
- Product Weight
- 1.5 oz (42.5 g)
- Product Width
- 0.74" (19 mm)
- Programmable
- No
- Servo Operating Voltage
- 6.0 - 8.4V (HV)
- Servo Size Category
- Standard
- Servo Type
- Digital
- Spline Count
- 23 - Tooth
- Water-Resistant
- No
- Wire Gauge
- 24 AWG
